Zunt - PN 10 Service Joints

PN 10 SERVICE JOINTS
For gas and water
PRODUCTION RANGE
SIZE from ½" to 3"

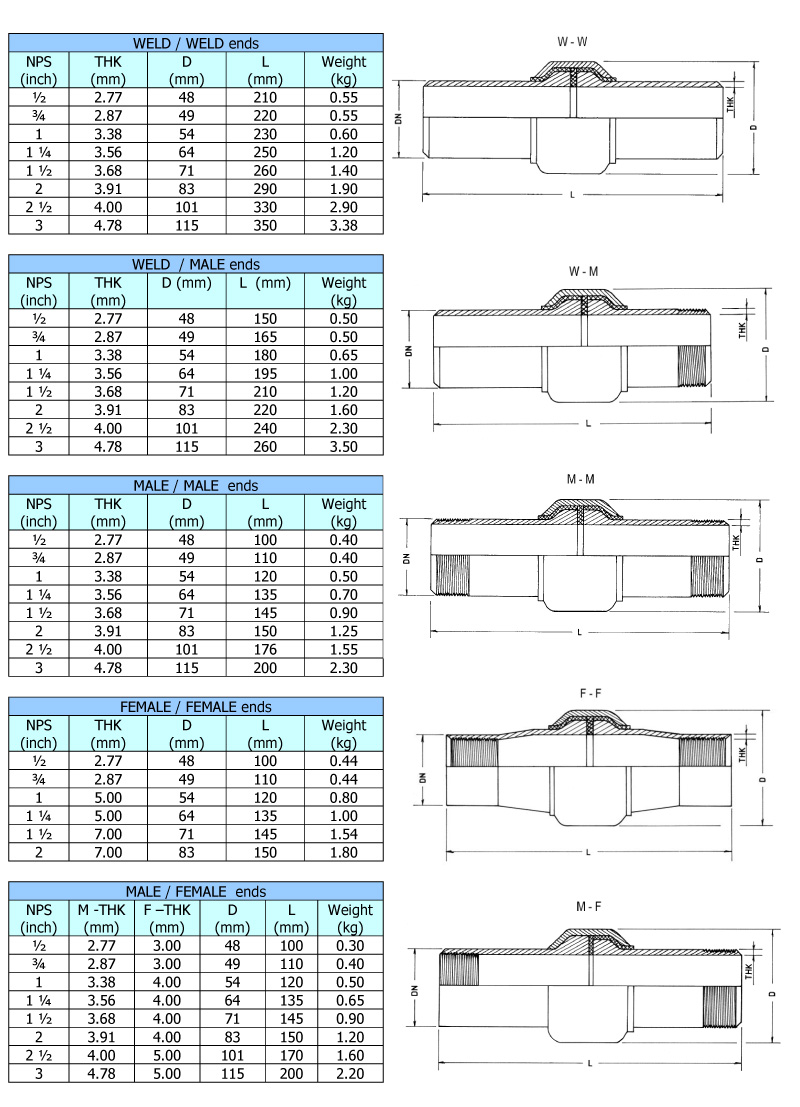

ENDS weld/weld - male/weld - male/male - male/female - female/female
THREADS ISO 7 / BSP / NPT on request


TECHNICAL FEATURES (Zunt standard)
Temperature Range -10°C / 70°C
Design Pressure 10 bar
Hydrotest Pressure 15 bar
Air Leak Test 5 bar for 10 seconds
Dieletric Strenght Test > 3 kV for 1 min. - 50 Hz AC
Electrical Resistance Test in dry conditions > 5 Mhom - 1000 V DC
Coating / Lining epoxy primer / epoxy resin
(Special lining for water on request)

Certification to UNI CIG 10284, D.M. 17/04/2008 & subsequent modifications




SERVICE JOINTS
