Design & Engineering

ZUNT ITALIANA engineers and technical personnel are at our clients’ disposal in order to design special Insulating Joints suitable for particularly “heavy” operating conditions, such as additional external loads or special MIJs made with special materials, special coatings, etc.

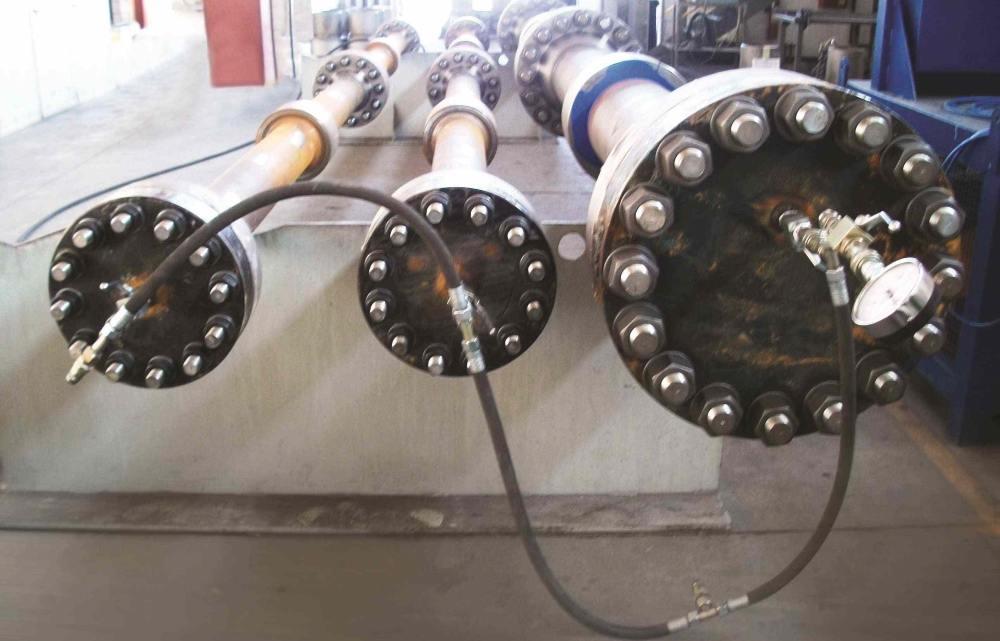

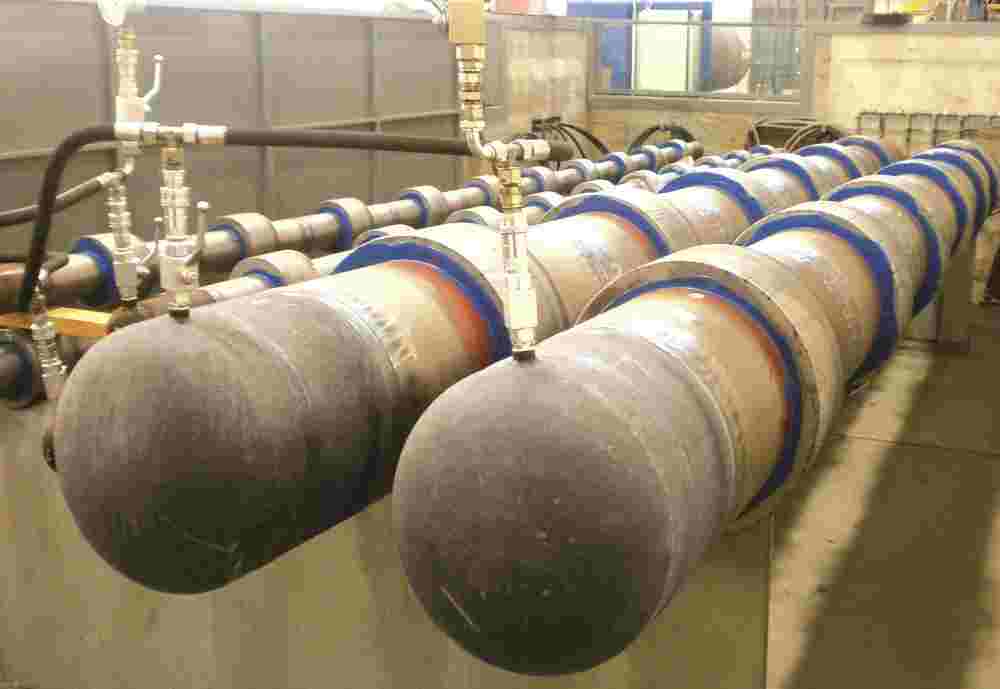

ZUNT ITALIANA Insulating Joints are designed to withstand a bending moment able to induce a total longitudinal stress of 75% SMYS (Specified Minimum Yield Stress) of the adjoining pipe, in hydrostatic test conditions and a torque sufficient to induce a torsional stress of 5% SMYS in the adjoining pups.

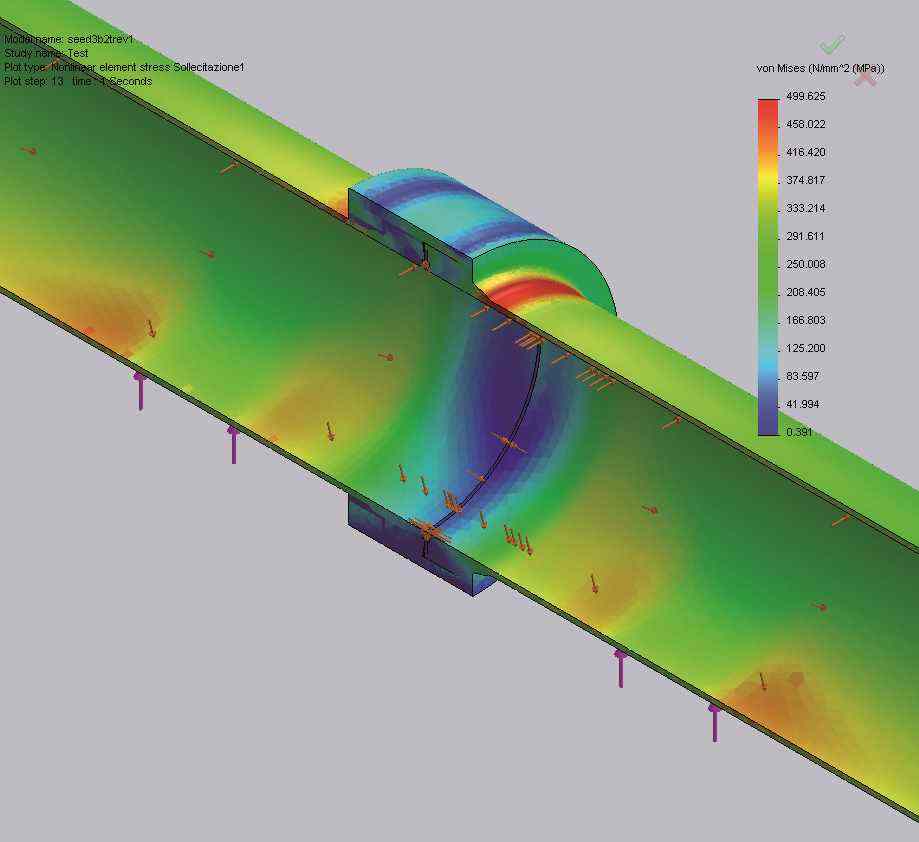

In order to meet the above requirements, Zunt Italiana can also implement a design verification by means of Finite Element Analysis (provided on request)
